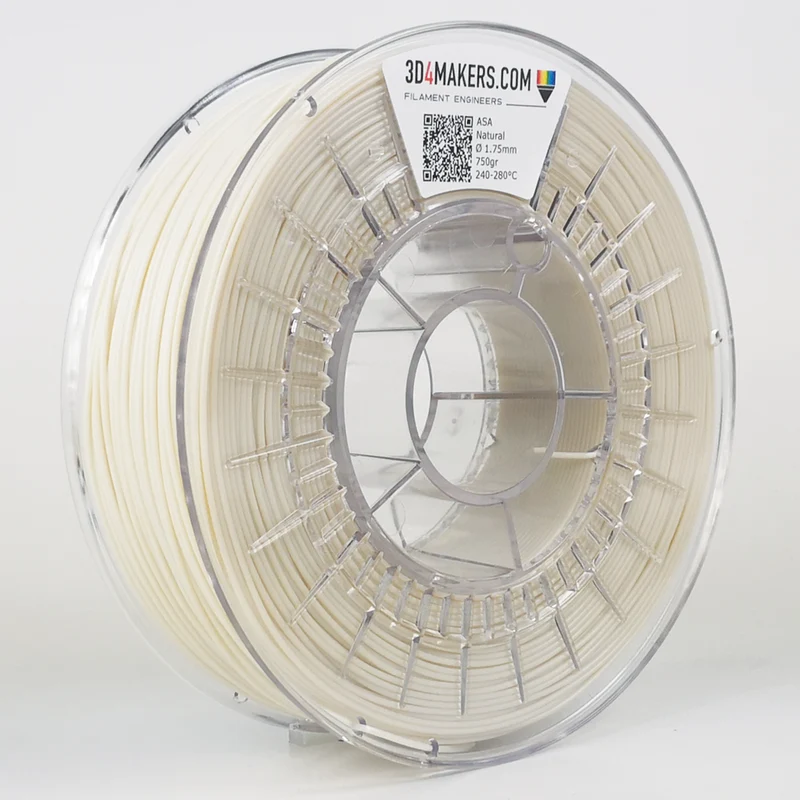

ASA Filament

ASA (Acrylonitrile-Styrene-Acrylate) Filament

The 3D4MAKERS ASA Filament will be delivered in a vacuum packaging in our recyclable box.

Technical information:

Acrylonitrile-Styrene-Acrylate (ASA) polymers are amorphous and have mechanical properties similar to those of ABS plastics. However, the ASA properties are far less affected by outdoor weathering. The outstanding weather resistance abilities of ASA is due to the acrylic ester elastomer. ASA parts have good chemical and heat resistance, and high impact strength, even at low temperatures. Typical ASA applications are buiding/construction, automotive and recreation parts.

Measurements & Tolerance

Size	Diameter tolerance	roundness
1,75 mm Filament	+/- 0,05mm	95%
2,85 mm Filament	+/- 0,10mm	95%

Physical properties

Description	Value	Test method
Density	1,07 g/cm3	ASTM D792
Melt Mass-Flow Rate (MFR) (220ᵒC/10KG)	12 g/10 min	ASTM D1238

Mechanical properties

Description	Value	Test method
Tensile Stress	47 Mpa	ASTM D638
Flexural Modulus	2210 Mpa	ASTM D790
Impact strength Notched Izod	180 j/m	ASTM D256
Rockwell Hardness (R-Scale)	103	ASTM D785

Printer settings

Description	Value
Printer nozzle temperature	240 - 280°C
Heated bed temperature	90 - 110°C
Bed Adhesion	Magigoo Original on glass or a PEI Sheet

To get the best results while printing we advise you to keep the 3D printer in a room where there is hardly any draft and/or temperature fluctuations. Keep the 3D printer out of the sun. This cannot be a room where people sleep.

When the 3D printer is not being used it is important to keep the 3D4MAKERS ASA Filament in a bag and stored in a cool, dry and dark place until it is used again.
