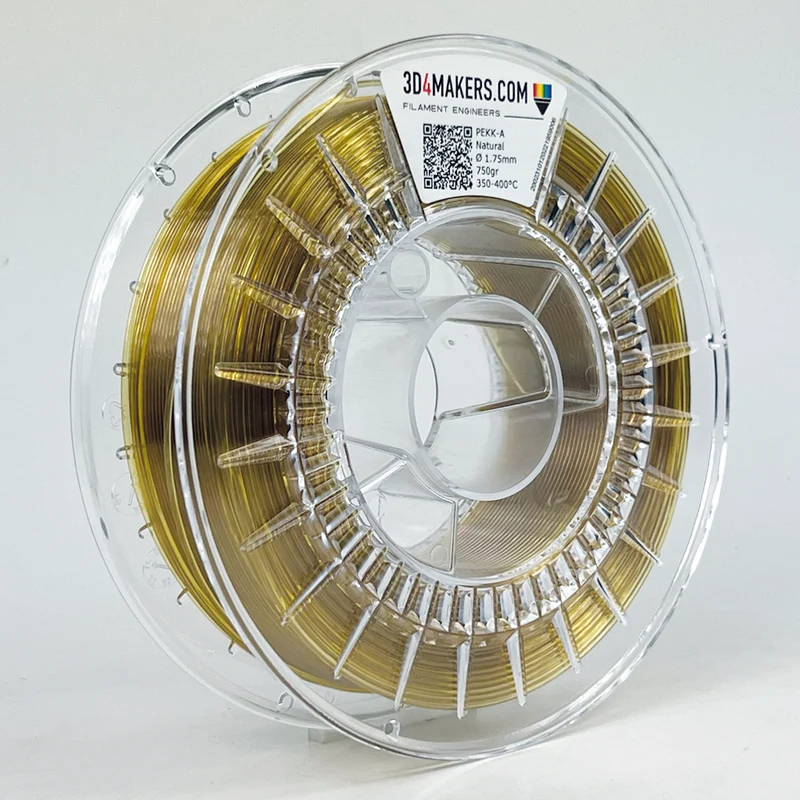

PEKK-A Filament

PEKK-A Filament

PEKK-A Filament (PolyEtherKetoneKetone) is high performance 3D printing optimised material with great processability. This material is a member of the high-performance Poly Aryl Ether Ketone (PAEK) family like PEEK. We used the PEKK 6000 series to produce the filament which is an amorphous grade with a slow crystallization rate and a high flow. This results in enhanced Z layer strength and provides ease during the FFF / FDM printing process. Typically the PEKK is being used by demanding industries like the aerospace, energy and transportation sector. PEKK-A is FAR 25.853 certified.
Why you should choose this filament:

• Better printability compared to PEEK
• High temperature resistance
• High chemical resistance
• Light weight & High tensile strength

• Inherently flame resistant (UL94 V-0)

Print Settings

• Print Temperature: 350 - 400°C
• Bed Temperature: 120 - 160°C
• Chamber Temperature: 70 -  150°C

• Print Speed: 20-40 mm/s
• Drying Temperature: 120°C, 4 - 8 hours

• Adhesion: Magigoo HT on Carbon plate, PEI sheet or glass


Documents

	Technical Data Sheet (401 KB)
	Material Safety Data Sheet (250 KB)
